Power Mirror Switch: Service and Repair

Power Mirror Switch Test/Replacement

1. Remove the driver's outer dashboard trim Driver's Outer Dashboard Trim Removal / Installation.

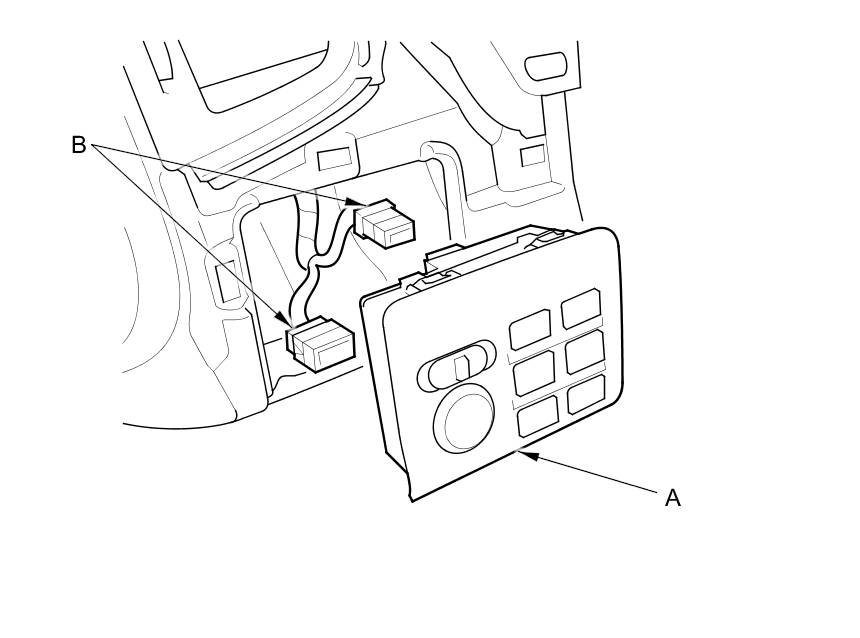

2. Remove the multi switch (A) and disconnect the connectors (B).

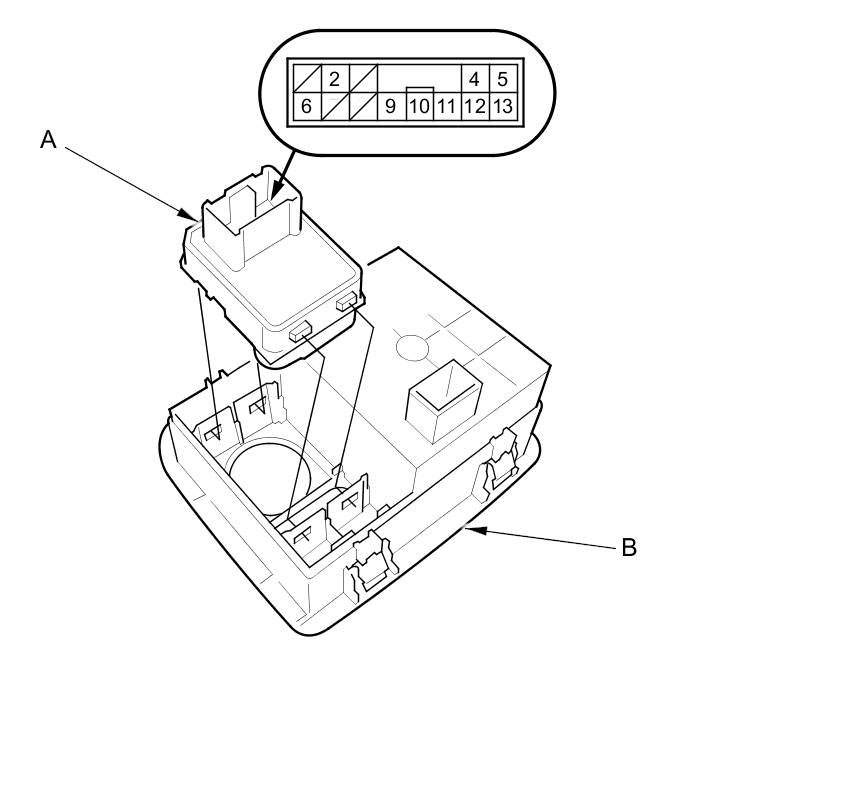

3. Remove the power mirror switch (A) from the multi switch (B).

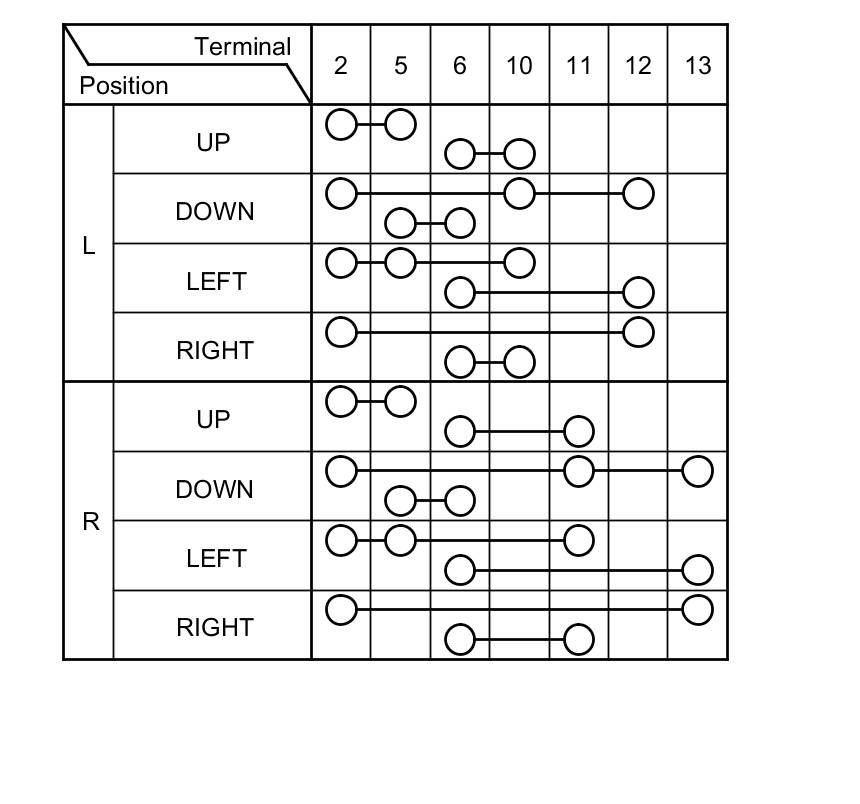

4. Check for continuity between the terminals in each switch position according to the table.

Power mirror switch





5. If the continuity is not as specified, replace the power mirror switch.

6. Install the switch in the reverse order of removal.
