Front Bumper Strake Replacement

Front Bumper Strake Replacement

NOTE: Take care not to scratch the front bumper.

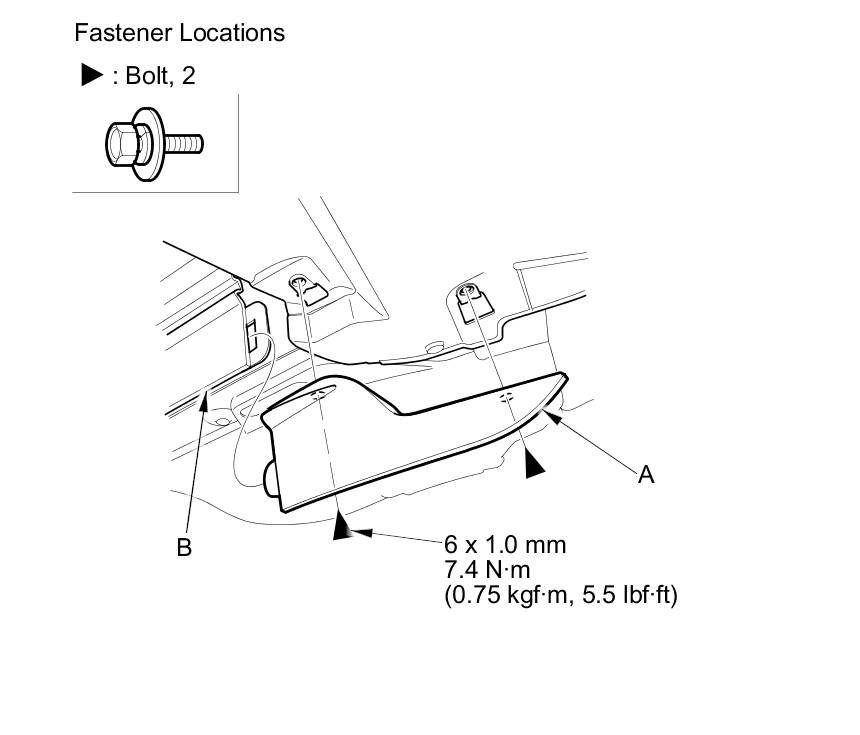

1. Remove the bolts, and release the front bumper strake (A) from the front air guide plate (B), then remove the strake.





2. Install the strake in the reverse order of removal.
