Home >> Acura >> 2012 >> ZDX V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 243 - Driver's Power Lumbar Support Switch Connector View

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

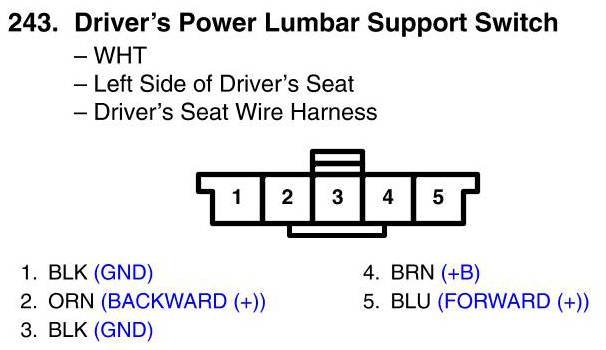

View 243 - Driver's Power Lumbar Support Switch Connector View
