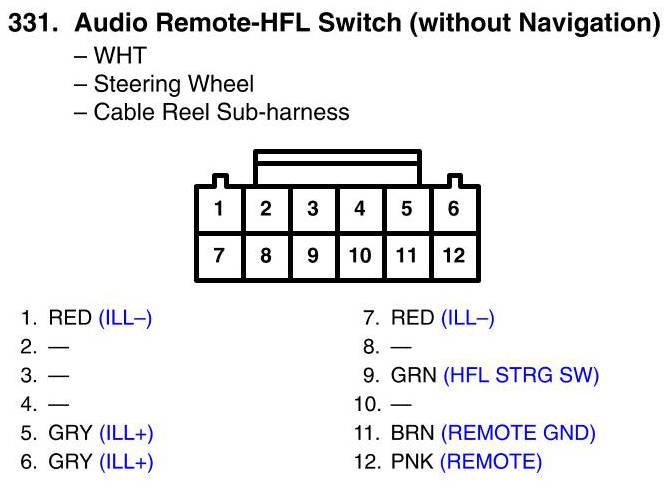

Audio Remote-HFL Switch Connector View (Without Navigation System)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Audio Remote-HFL Switch Connector View (Without Navigation System)
