Home
>>
Acura
>>
2012
>>
ZDX V6-3.7L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Keyless Starting System
>>
Diagrams
>>
Connector Views
>>
Remote Engine Starting Control Unit Connector View (Acura Accessory)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

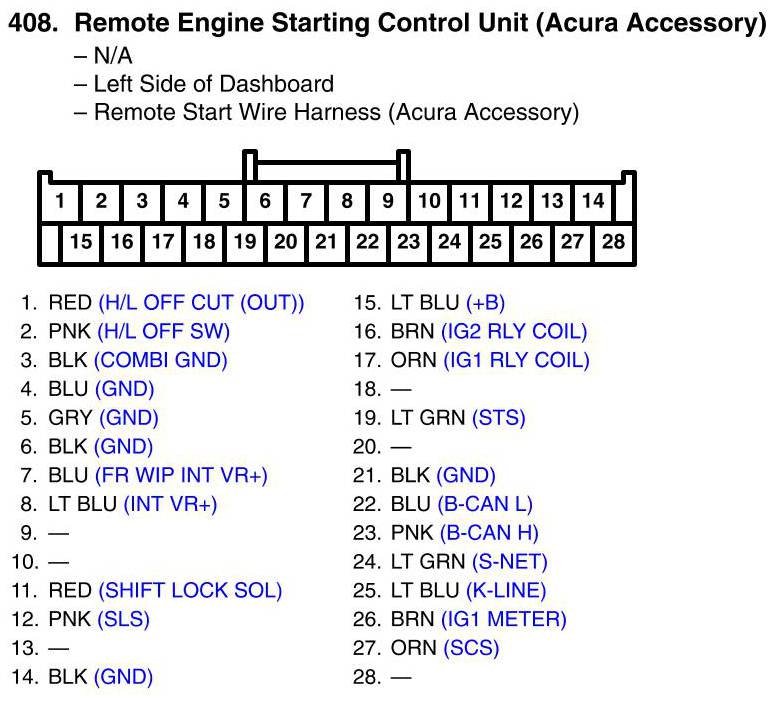

Remote Engine Starting Control Unit Connector View (Acura Accessory)
