Rear Power Window Switch Test/Replacement

Rear Power Window Switch Test/Replacement

1. Remove the rear door panel Rear Door Panel Removal / Installation.

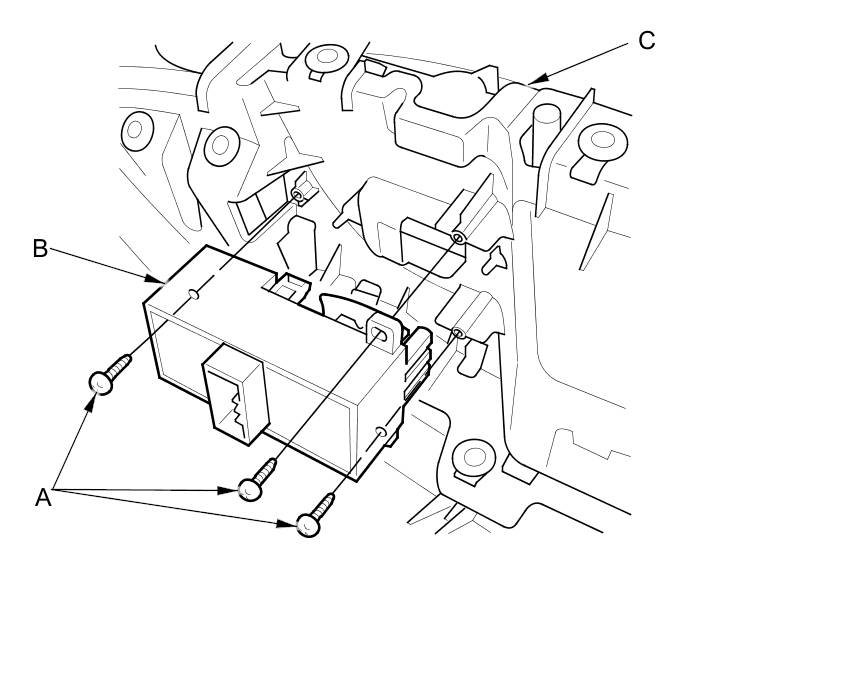

2. Remove the three screws (A) and rear power window switch (B) from the armrest assembly (C).





3. Swap the rear power window switch with another known-good power window switch and test. If the original power window switch is faulty; replace it.

4. Install the switch in the reverse order of removal.
