Front Subframe Torque

After removing the subframe mounting bolts, the front subframe stiffener mounting bolts, the front subframe front stiffener mounting bolts, and the front subframe rear stiffener mounting bolts, be sure to replace them with new ones.

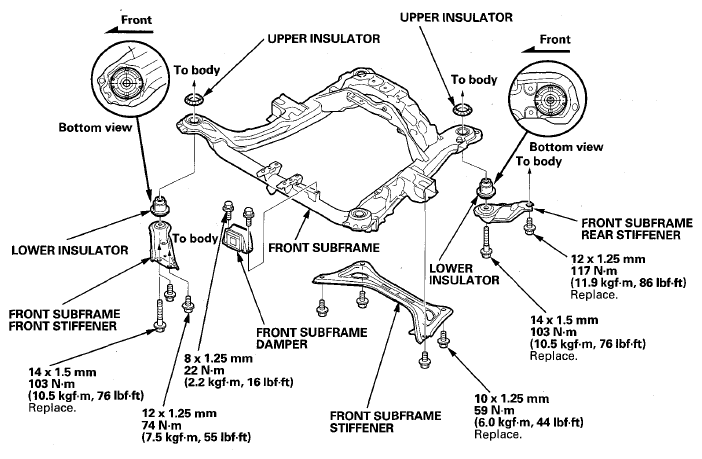

Fig 1: Front Subframe Assembly With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.
