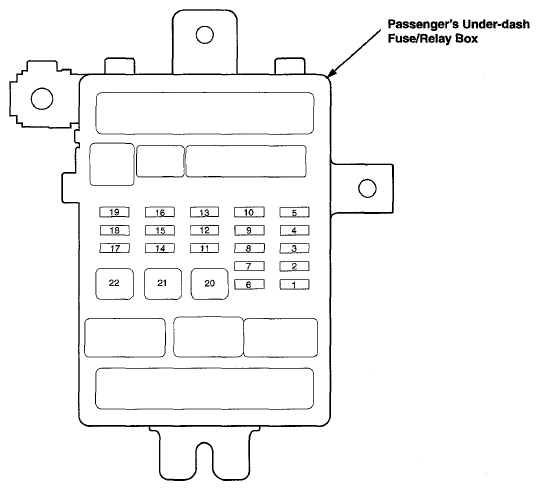

Fuse-to-Components Index
| Fuse Number | Fuse Name | Amps | See | Component or Circuit Protected | Notes |
|---|---|---|---|---|---|
| 1 | H/L DRL R | 10A | POWER DISTRIBUTION | Passenger's MICU | |
| 2 | SMALL (EXTRA) R | 10A | POWER DISTRIBUTION | Passenger's MICU | |
| 3 | FR FOG R | 10A | POWER DISTRIBUTION | Passenger's MICU | |
| 4 | H/L R | 15A | POWER DISTRIBUTION | Passenger's MICU | |
| 5 | - | - | POWER DISTRIBUTION | Not Used | |
| 6 | SMALL (INTR) | 7.5A | POWER DISTRIBUTION | ACC Combination Switch/Distance Switch (ACC), A/T Gear Position Indicator Panel Light, Audio and HVAC Switch Panel (without Navigation), Audio-HVAC Display Unit (without Navigation), Audio-Navigation and HVAC Switch Panel (Navigation), Audio Remote Switch, Climate Control Unit, Console Box Light, Cruise Control Combination Switch (without ACC), Dashlights Brightness Controller Switch, Door Inner Handle Lights (Inner Handle Lights), Driver's Footwell Light, Driver's Seat Heater Switch (without Ventilated Seats), Driver's Seat Ventilation Switch (Ventilated Seats), Front Passenger's Airbag Cutoff Indicator (Ventilated Seats), Front Passenger's Footwell Light, Front Passenger's Seat Heater Switch (without Ventilated Seats), Front Passenger's Seat Ventilation Switch (Ventilated Seats), Glove Box Light, Hazard Warning Switch, Integrated Dynamics System Switch, Left Rear Seat Heater Switch (Rear Seat Heaters), Multi Switch, Panoramic Glass Roof/Sunshade Switch, Paddle Shifter +, Paddle Shifter -, Power Mirror Switch, Rear Individual Map Light, Right Rear Seat Heater Switch (Rear Seat Heaters), Roof Console, Seat Ventilation Control Unit (Ventilated Seats) | |
| 7 | - | - | 10 | Not Used | |
| 8 | AS P/SEAT (REC) | 20A | 10 | Front Passenger's Power Seat Adjustment Switch (Recline Motor and Rear Up-down Motor) | |
| 9 | AS P/SEAT (SLIDE) | 20A | 10 | Front Passenger's Power Seat Adjustment Switch (Front Up-down Motor and Slide Motor) | |
| 10 | DOOR LOCK R | 10A | 10 | Door Lock Relay, Door Unlock Relay | |
| 11 | P/W REAR R | 20A | 10 | Right Rear Power Window Relay | |
| 12 | SMART | 10A | 10 | Electric Steering Lock, Engine Start/Stop Switch, Power Control Unit, Remote Slot, Remote Slot Control Unit | Keyless Access |
| 13 | P/W AS | 20A | 10 | Front Passenger's Power Window Switch | |
| 14 | - | 7.5A | POWER DISTRIBUTION | Not Used (Passenger's MICU) | |
| 15 | AMP | 20A | POWER DISTRIBUTION | Stereo Amplifier | |
| 16 | CONSOLE ACC SOCKET | 15A | POWER DISTRIBUTION | Console Power Socket Relay | |
| 17 | - | - | POWER DISTRIBUTION | Not Used | |
| 18 | LUMBAR | 7.5A | POWER DISTRIBUTION | Driver's Power Lumbar Support Switch | |
| 19 | AS SEAT HEATER | 20A | POWER DISTRIBUTION | Driver's Seat Heater Relays (without Ventilated Seats), Front Passenger's Seat Heater Relays (without Ventilated Seats), Seat Ventilation Relay (Ventilated Seats) | |
| 20 | - | - | 10 | Not Used | |
| 21 | - | - | 10 | Not Used | |
| 22 | - | - | POWER DISTRIBUTION | Not Used |
