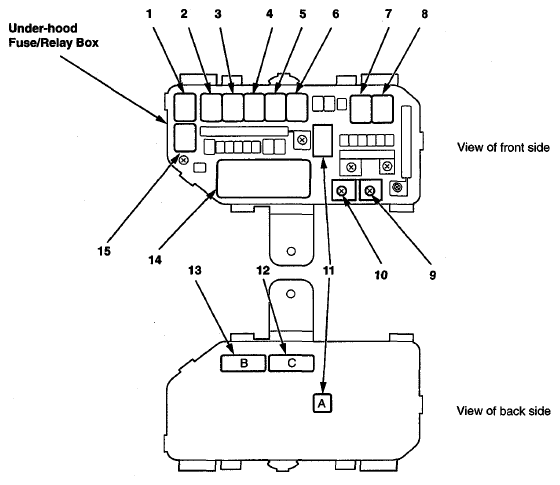

| 1 |
Rear Window Defogger Relay |
4 |
|
|
| 2 |
A/C Condenser Fan Relay |
4 |
|
|
| 3 |
PGM-FI Main Relay |
4 |
|
|
| 4 |
PGM-FI Sub-Relay |
4 |
|
|
| 5 |
Ignition Coil Relay |
4 |
|
|
| 6 |
ETCS Control Relay |
4 |
|
|
| 7 |
Headlight Washer Relay |
4 |
|
Canada, Mexico |
| 8 |
Blower Motor Relay |
4 |
|
|
| 9 |
T1 |
|
Starter Cable (see
CONNECTOR TO HARNESS INDEX
) |
|
| 10 |
T101 |
|
Engine Wire Harness (see
ENGINE WIRE HARNESS (ENGINE SECTION)
) |
|
| 11 |
A (ELD Unit) |
3 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 12 |
C |
5 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 13 |
B |
14 |
Right Engine Compartment Wire Harness (see
RIGHT ENGINE COMPARTMENT WIRE HARNESS
) |
|
| 14 |
Relay Circuit Board |
|
Connector B (14 pins), Connector C (5 pins) |
|
| 15 |
A/C Compressor Clutch Relay |
4 |
|
|
