Frame Repair Chart
>>
Top View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Top View
Fig 1: Frame Repair Chart - Top View (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

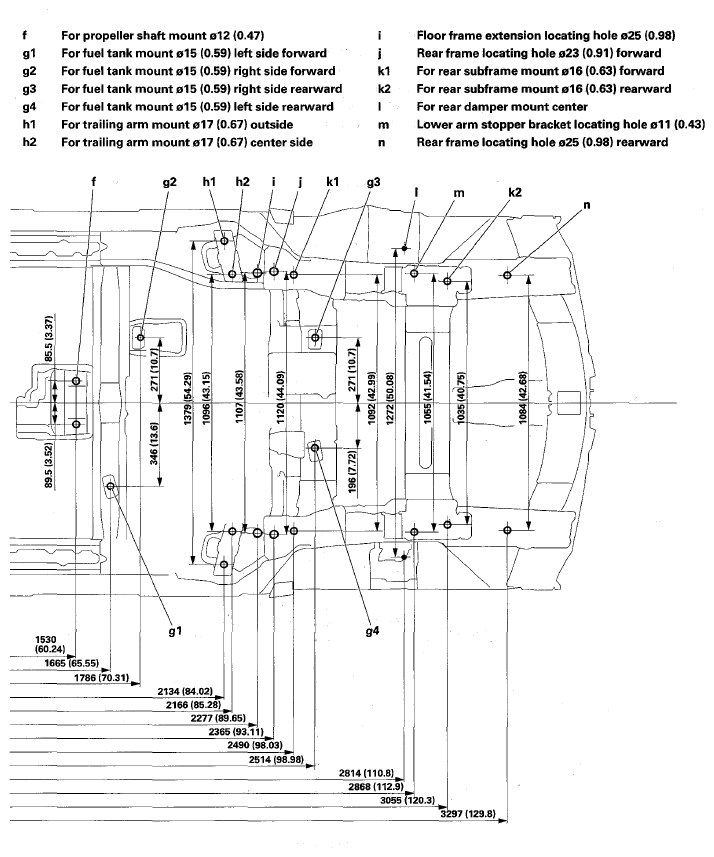

Fig 2: Frame Repair Chart - Top View (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
