Switch Test/Replacement

NOTE: SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or servicing.

Separate the lumbar support switch cover (A) from the switch (B).

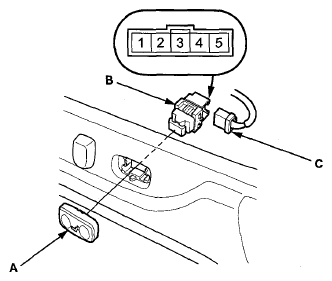

Fig 1: Identifying Lumbar Support Switch Cover 5P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 5P connector (C) from the switch.
Check for continuity between the terminals in each switch position according to the table.

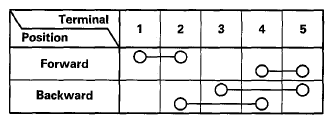

Fig 2: Lumbar Support Switch Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
Install the switch in the reverse order of removal.
