C209 Connector End View

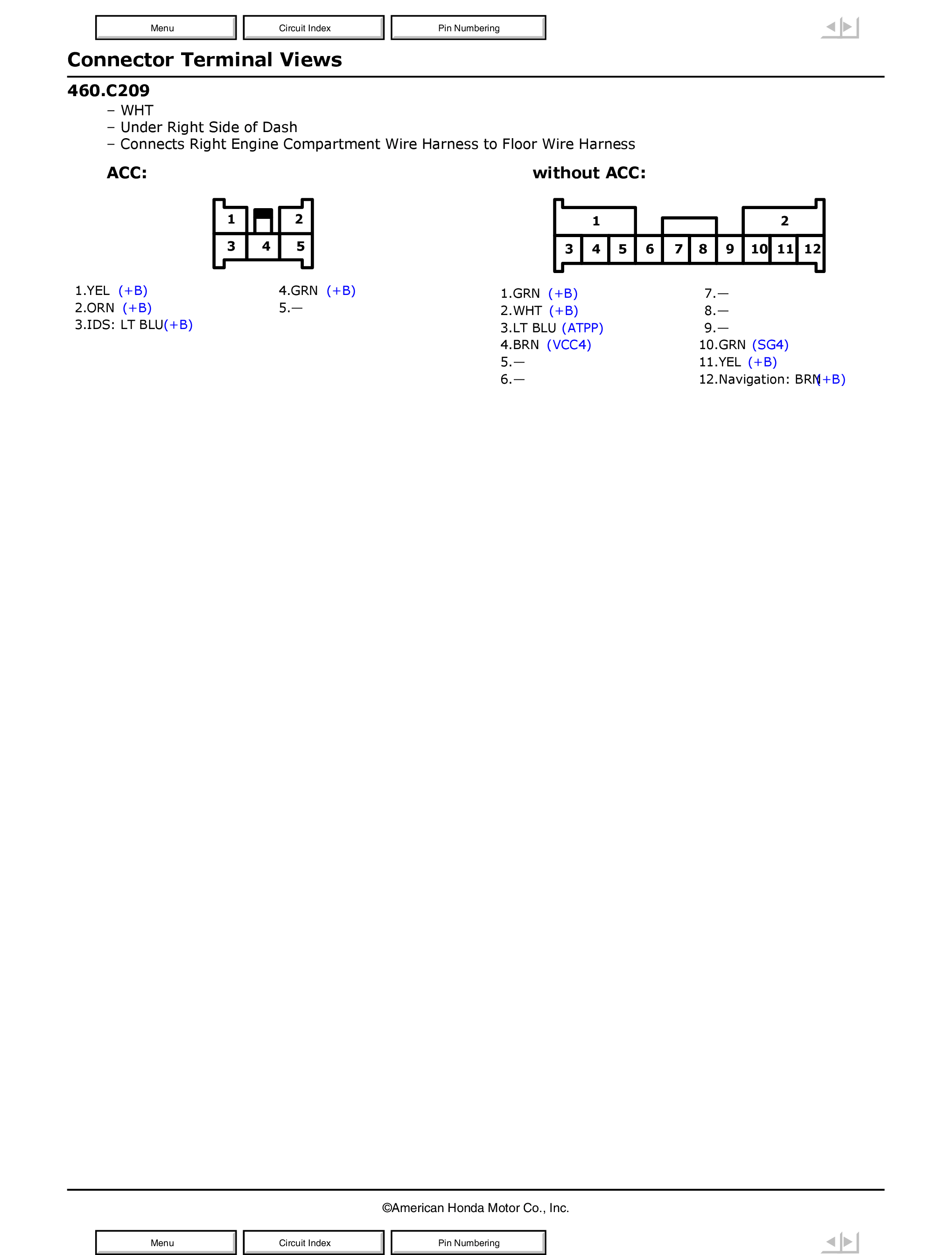

Fig 1: C209 Connector End View
GHHW12861Courtesy of AMERICAN HONDA MOTOR CO., INC.

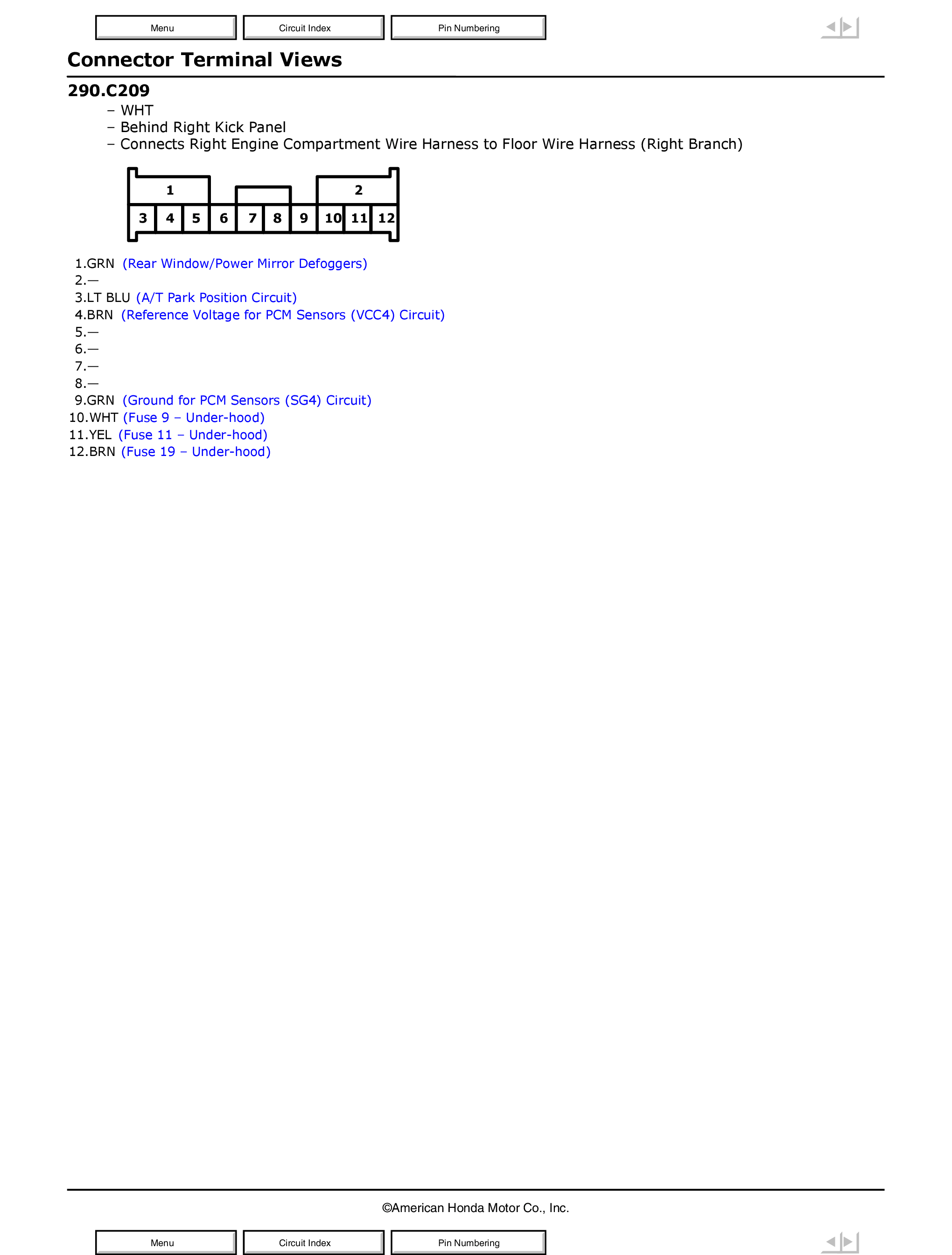

Fig 1: C209 Connector End View
GHHW13148Courtesy of AMERICAN HONDA MOTOR CO., INC.
