C602 Connector End View

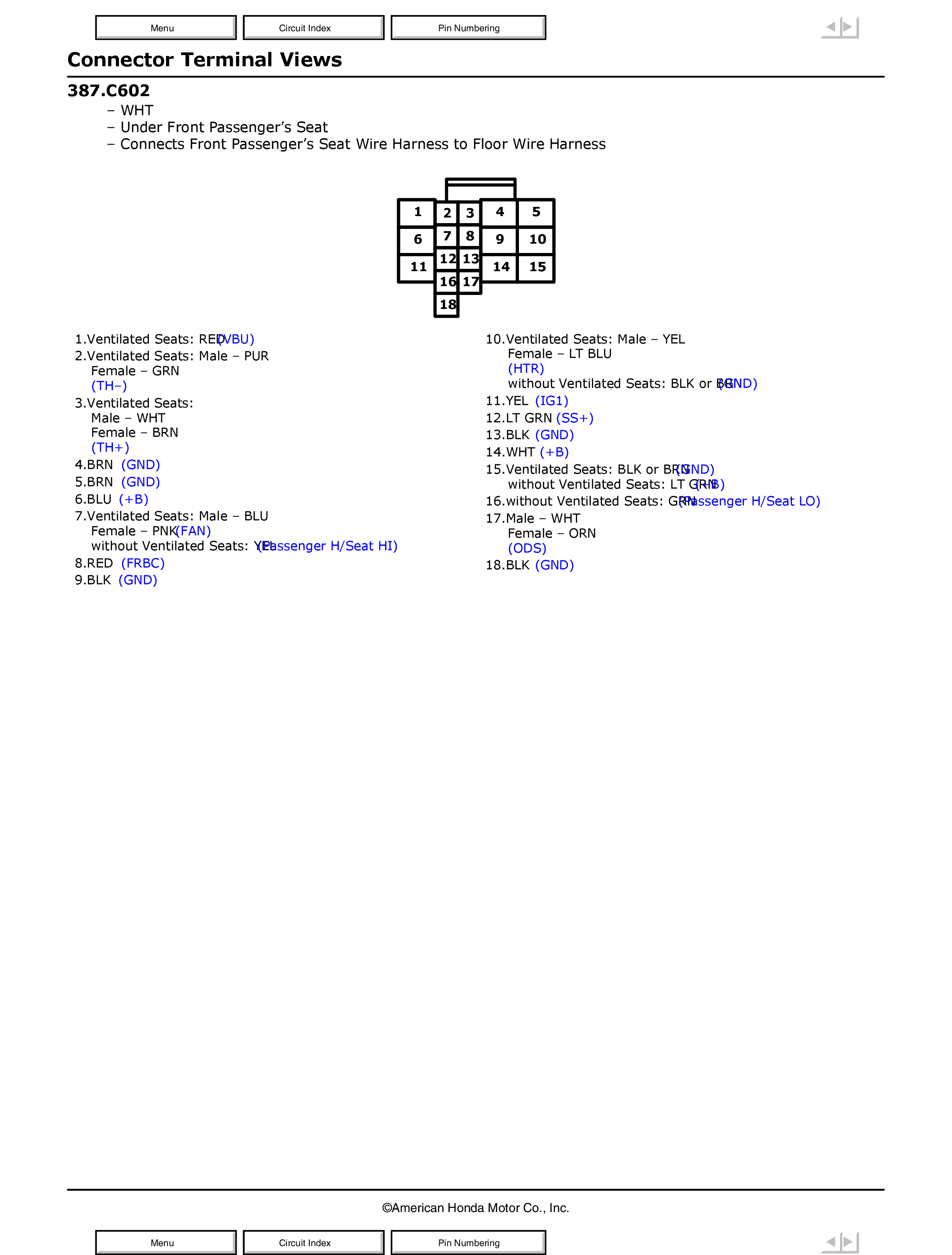

Fig 1: C602 Connector End View
GHHW12788Courtesy of AMERICAN HONDA MOTOR CO., INC.

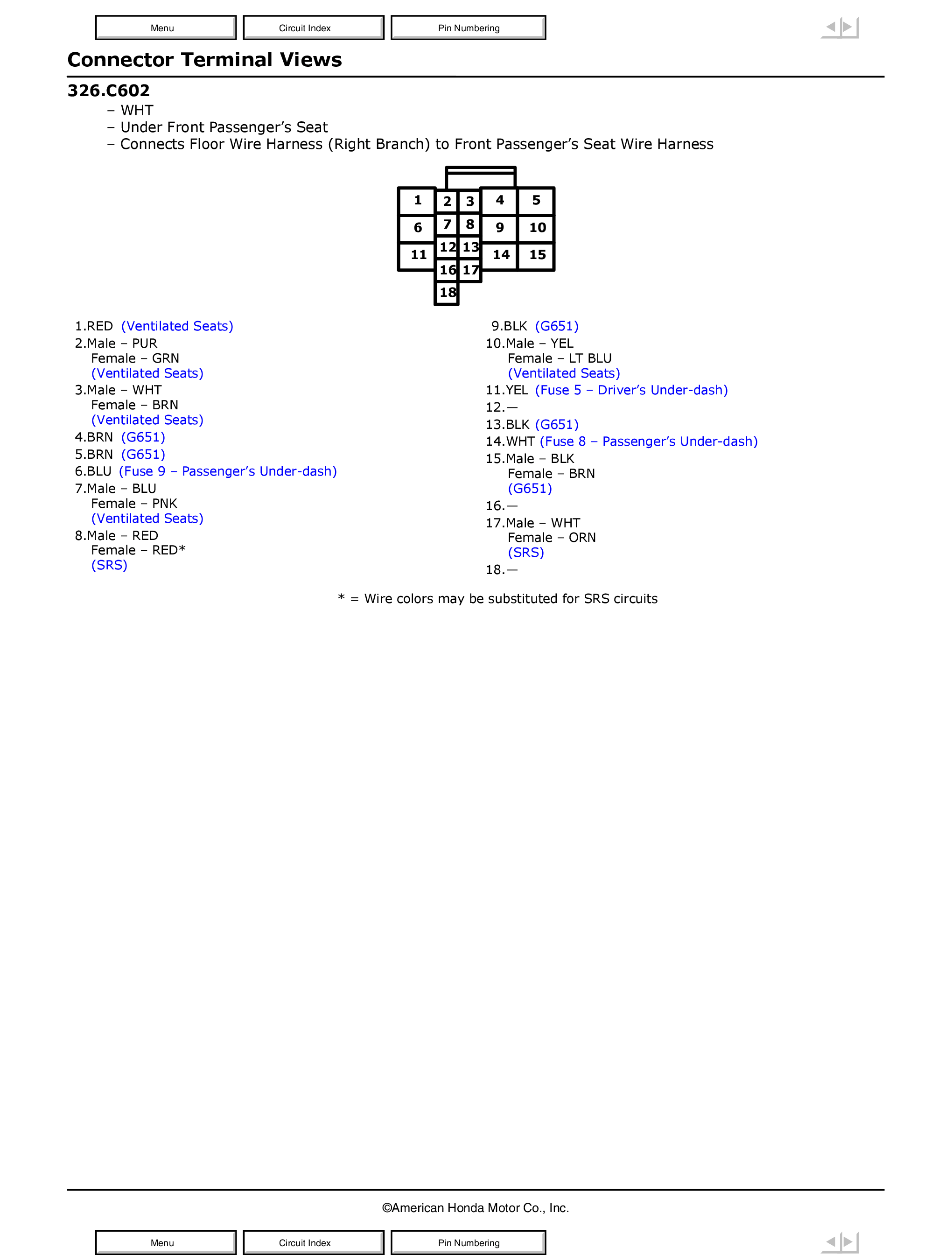

Fig 1: C602 Connector End View
GHHW13182Courtesy of AMERICAN HONDA MOTOR CO., INC.
