C763 Connector End View

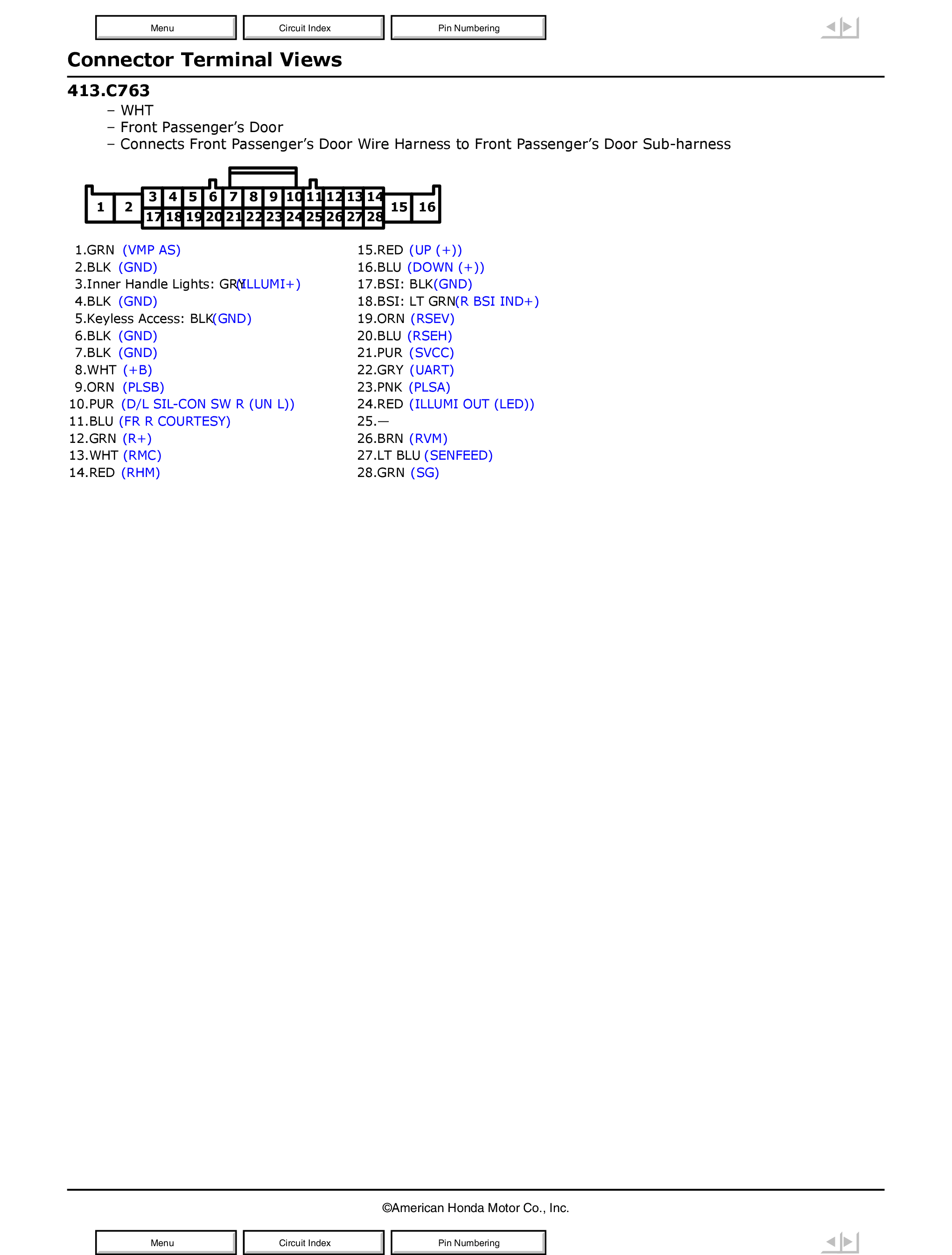

Fig 1: C763 Connector End View
GHHW12814Courtesy of AMERICAN HONDA MOTOR CO., INC.

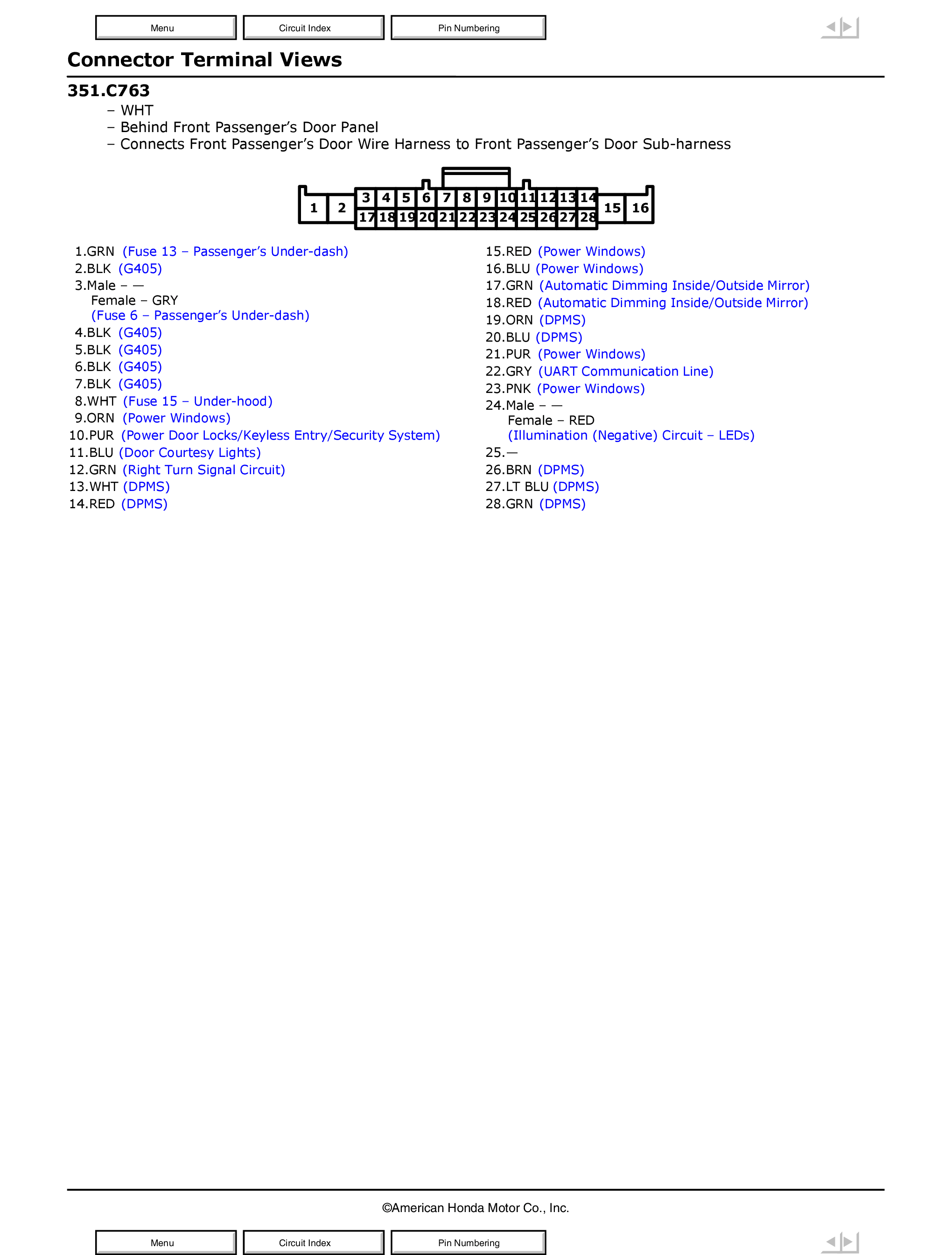

Fig 1: C763 Connector End View
GHHW13207Courtesy of AMERICAN HONDA MOTOR CO., INC.
