Left License Plate Light Connector End View

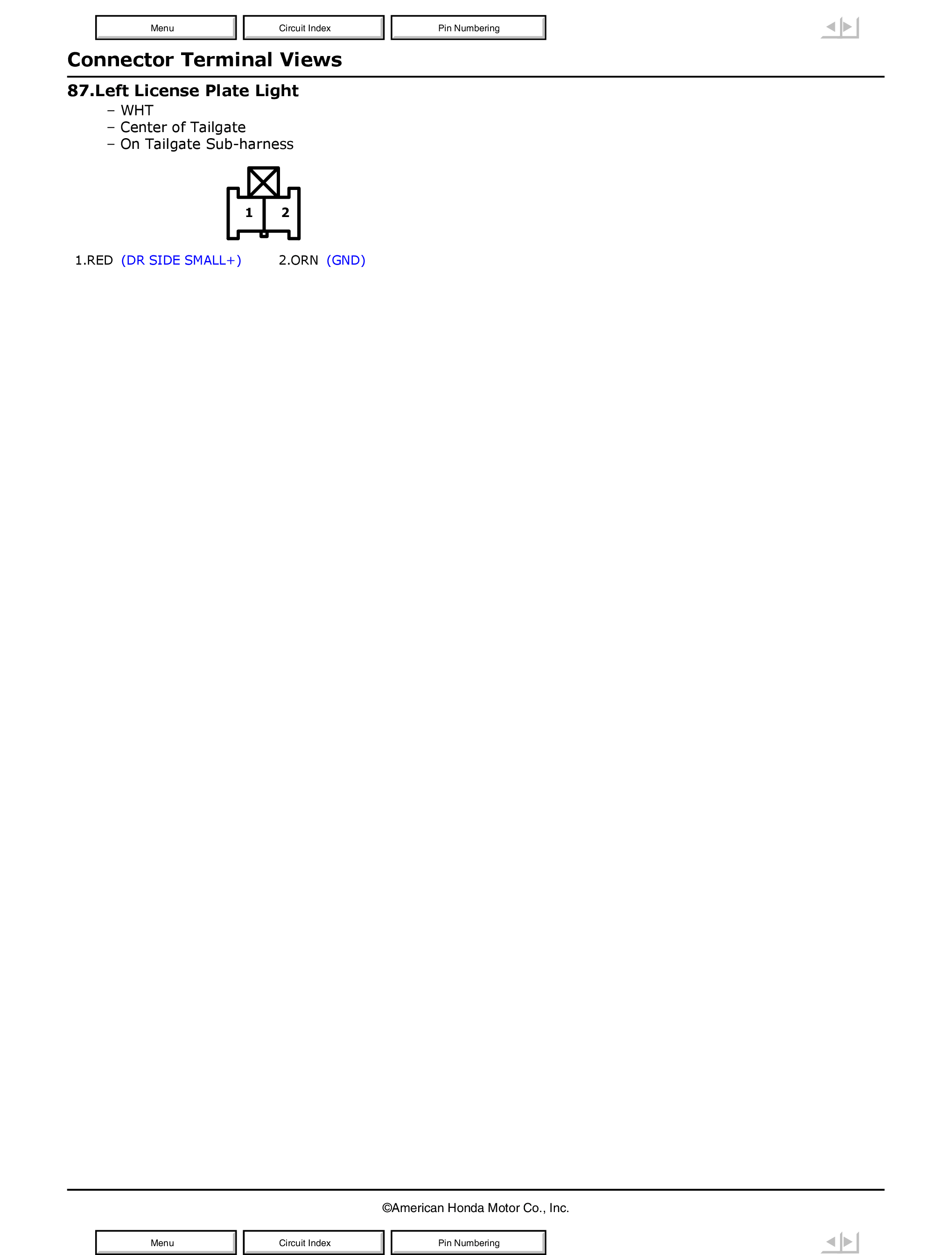

Fig 1: Left License Plate Light Connector End View
GHHW12504Courtesy of AMERICAN HONDA MOTOR CO., INC.

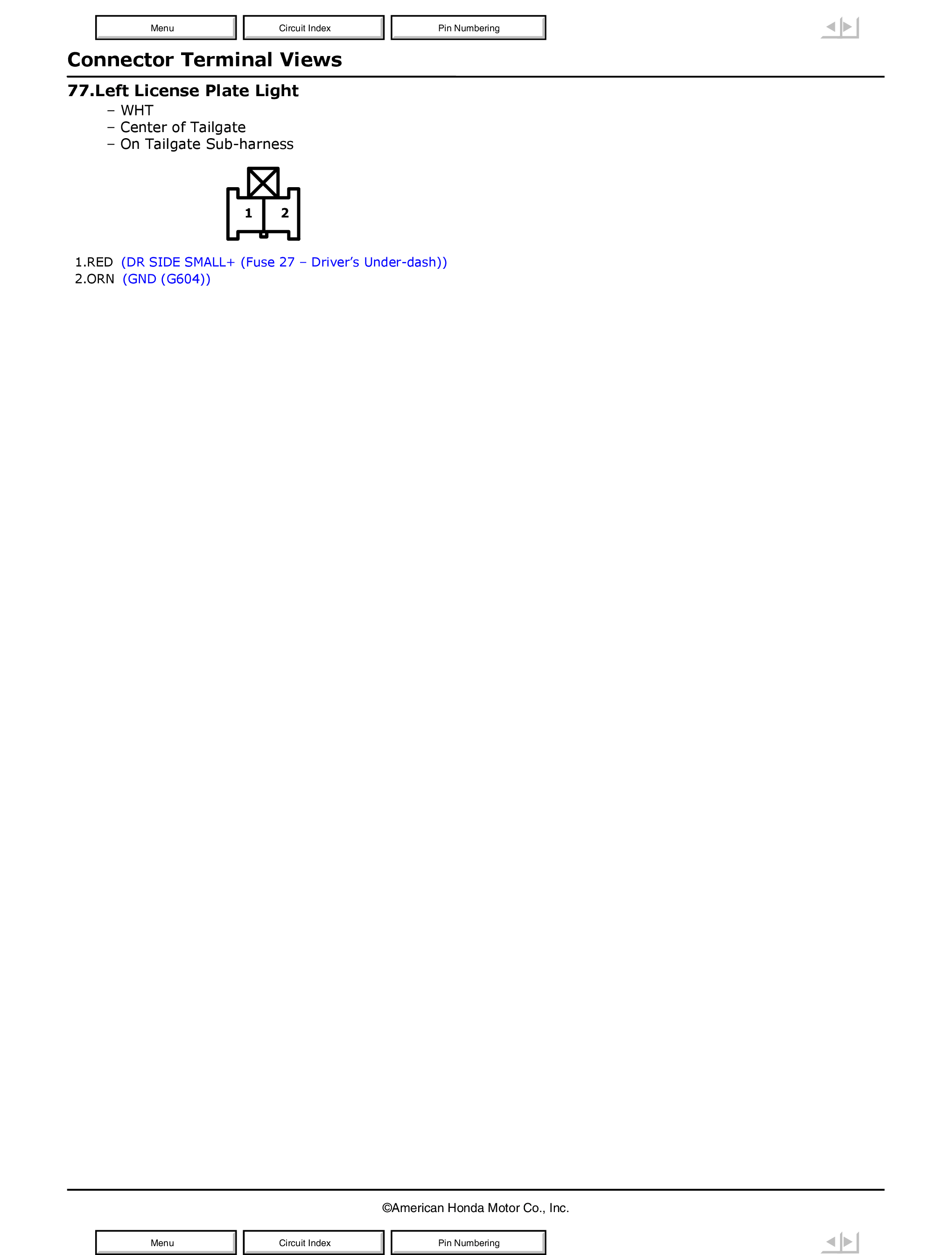

Fig 1: Left License Plate Light Connector End View
GHHW12939Courtesy of AMERICAN HONDA MOTOR CO., INC.
