HANDSFREELINK Control Unit 32P Connector

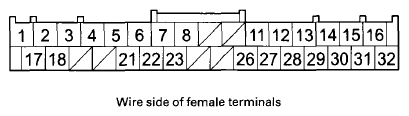

Fig 1: HandsFreeLink Control Unit 32P Connector End View
G08071898Courtesy of AMERICAN HONDA MOTOR CO., INC.

HandsFreeLink Control Unit 32P Connector

Cavity Wire Color Terminal Name Connects to
1 BLK GND Body ground to G501
2 GRY HFL STRG SW HFL switch
3 PUR HFL MUTE HFL-navigation microphone
4 PNK GA-NET BUS + Audio-navigation unit, AcuraLink control unit (XM receiver)(2), XM receiver(3), Navigation display unit
5 BLU GA-NET BUS- Audio-navigation unit, AcuraLink control unit (XM receiver)(2), XM receiver(3), Navigation display unit
6(2) WHT HIP/NAV COMM4 AcuraLink control unit (XM receiver)
7(2) RED HIP/NAV COMM3 AcuraLink control unit (XM receiver)
8(2) GRY(1) HIP/NAV COMM SH Shield for terminals No. 6, No. 7, No. 22, and No. 23
11 GRN AUDIO R + Audio-navigation unit, AcuraLink control unit(XM receiver)(2), XM receiver(3)
12 BLK AUDIO L+ Audio-navigation unit, AcuraLink control unit (XM receiver)(2), XM receiver(3)
13 BRN TELM SIG + Audio-navigation unit
14 GRY MIC SH Shield for terminals No. 15 and No. 16
15 PNK MIC+ HFL-navigation microphone
16 BLU MIC- HFL-navigation microphone
17 WHT + B No. 15 (10 A) fuse in the under-hood fuse/relay box
18 PUR ACC No. 18 (7.5 A) fuse in the driver's under-dash fuse/relay box
21 GRY(1) GA-NET BUS SH Shield for terminals No. 4 and No. 5
22(2) BLK HIP/NAV COMM1 AcuraLink control unit (XM receiver)
23(2) GRN HIP/NAV COMM2 AcuraLink control unit (XM receiver)
26 GRY(1) AUDIO SH Shield for terminals No. 11, No. 12, No. 27, and No. 28
27 WHT AUDIO R- Audio-navigation unit, AcuraLink control unit (XM receiver)(2), XM receiver(3)
28 RED AUDIO L- Audio-navigation unit, AcuraLink control unit (XM receiver)(2), XM receiver(3)
29 YEL TELM SIG- Audio-navigation unit
30 GRY(1) TELM SIG SH Shield for terminals No. 13 and No. 29
31 GRN MIC SIG + Audio-navigation unit
32 RED MIC SIG- Audio-navigation unit
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.
(2) USA models
(3) Canada models
