Unit Check (Quick Check): Radio

This diagnosis tests the audio-navigation unit internal radio tuner and CD/DVD player. If Connection is NG, replace the audio-navigation unit.

NOTE: If the XM link appears red, but the radio link appears green in the navigation system link, refer to audio system symptom troubleshooting.

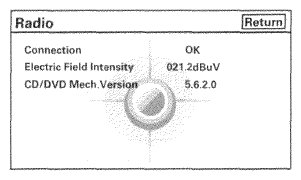

Fig 1: Display - Radio Screen

Courtesy of AMERICAN HONDA MOTOR CO., INC.
