B-CAN System Link

This diagnosis tests whether the audio-navigation unit is receiving B-CAN data properly.

B-CAN (Body Controller Area Network) passes information between processors on the network. The B-CAN network uses a communication protocol that transmits data at 125 Kbps.

If any icons are red, check for B-CAN DTCs with the HDS.

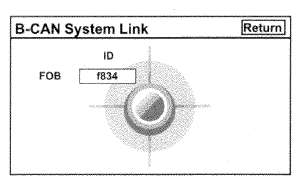

Fig 1: Display - B-CAN System Link Screen

Courtesy of AMERICAN HONDA MOTOR CO., INC.
