Rear Camera

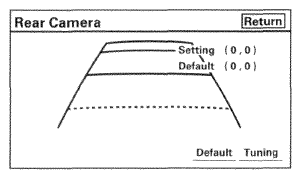

If you selected the rear camera, the rearview camera image appears. If you need to adjust the guide line, select Turning and adjust the guide line with the interface dial. The Default button resets the guide line position to factory specifications.
If the client starts the vehicle, and immediately shifts into R position, the camera Image appears within 1 second, but the guidelines may take up to 7 seconds to appear. This is normal.
The rearview camera is connected to the audio-navigation unit via the navigation display unit. The audio-navigation unit must boot up (7 seconds) before it can display the guidelines.
