Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Driver Position Memory System
>>
Circuit Diagram - Power Mirror
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram - Power Mirror

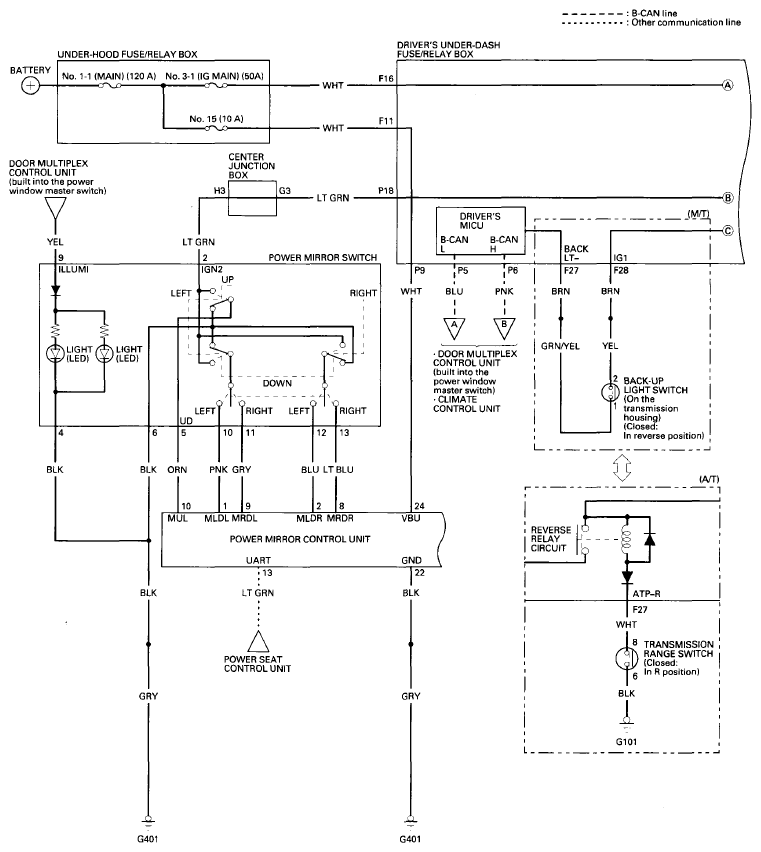

Fig 1: Power Mirror Circuit Diagram (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

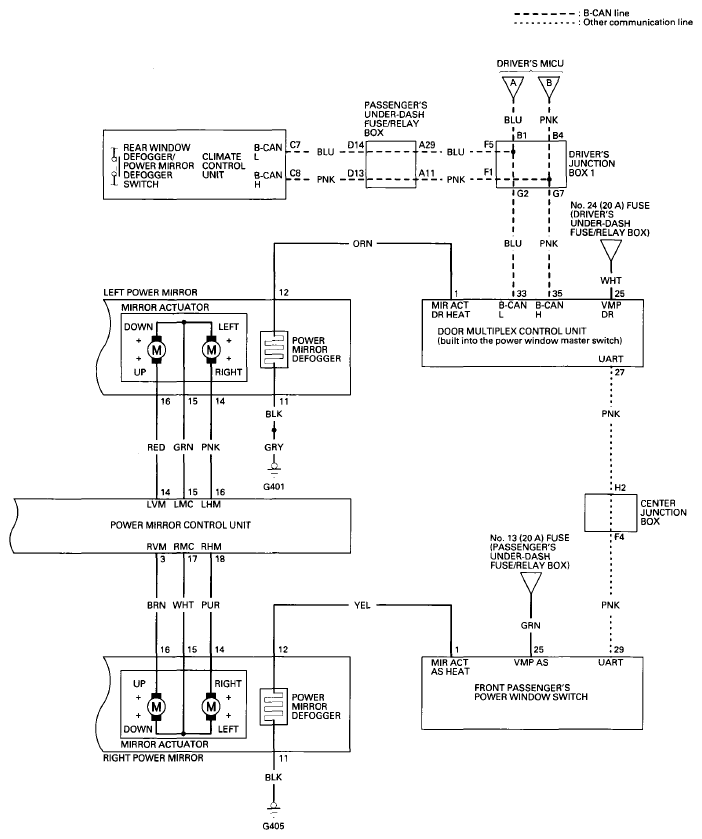

Fig 2: Power Mirror Circuit Diagram (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

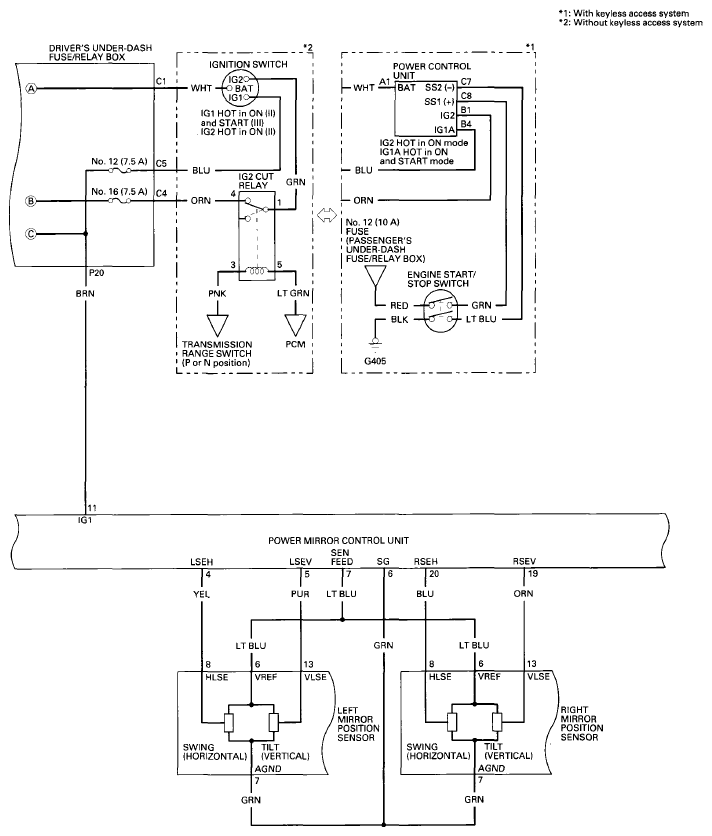

Fig 3: Power Mirror Circuit Diagram (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
