Speaker Check Mode: Notes
NOTE:
- Not all self-diagnostic functions appear on all models.
- There may be other self-diagnostic functions that are for factory use only.
- Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode. Make sure the audio system is turned off.

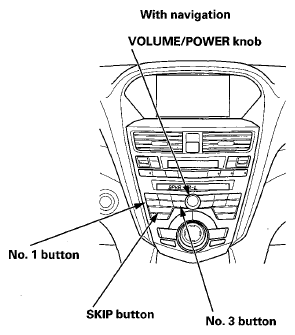

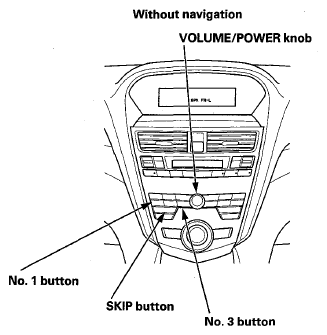

- Push and hold the preset No. 1 and No. 3 buttons.
- While holding the buttons, push the VOLUME/POWER knob to on.
- Release the buttons and the speaker check mode begins. A tone should sound from one speaker.
- Each time you press the SKIP button, the test moves to the next speaker in the order listed in the table.NOTE: Adjust the volume level to a comfortable level.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Display Specifications
(→) is pressed: (1)→(2)→(3)→(4)→(5)→(6)→(7)
(←) is pressed: (1)→(7)→(6)→(5)→(4)→(3)→(2)
Speaker Displayed Segments Remarks (1) Driver's door speaker and left tweeter SPKR FR-L(1) SPK FR-L(2) You should hear a tone corresponding to the speaker (2) Front center speaker SPKR CENTER(1) SPK CTR(2) You should hear a tone corresponding to the speaker (3) Front passenger's door speaker and right tweeter SPKR FR-R(1) SPK FR-R(2) You should hear a tone corresponding to the speaker (4) Right rear door speaker and right satellite speaker(1) SPKR RR-R(1) SPK RR-R(2) You should hear a tone corresponding to the speaker (5) Subwoofer SPKR SUBWOOFER(1) SPK SUBW(2) You should hear a tone corresponding to the speaker (6) Left rear door speaker and left satellite speaker(1) SPKR RR-L(1) SPK RR-L(2) You should hear a tone corresponding to the speaker (7) All speakers SPKR ALL(1) SPK ALL(2) You should hear a tone corresponding to the speaker (1) With navigation (2) Without navigation NOTE: Any other diagnostic screens are for factory use only. - To end the speaker check mode, turn the audio system off, or turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.
