XM Receiver Connector A (14P)

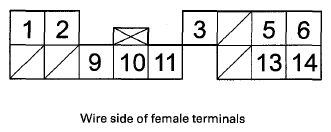

Fig 1: Identifying XM Receiver Connector A (14P) Terminals
G08077179Courtesy of AMERICAN HONDA MOTOR CO., INC.
XM RECEIVER CONNECTOR A (14P) (CANADA MODELS WITH NAVIGATION)

Cavity Wire Color Terminal Name Connects to
A1 WHT + B Audio-navigation unit
A2 LT BLU SYS ACC Audio-navigation unit
A3 GRY(1) GA-NET BUS SH Shield for terminals No. 9 and No. 10
A5 GRN AUDIO R + Audio-navigation unit, HandsFreeLink control unit
A6 BLK AUDIO L+ Audio-navigation unit, HandsFreeLink control unit
A9 WHT GA-NET BUS+ Audio-navigation unit, HandsFreeLink control unit
A10 BLK GA-NET BUS - Audio-navigation unit, HandsFreeLink control unit
A11 BLK GND Audio-navigation unit
A13 WHT AUDIO R- Audio-navigation unit, HandsFreeLink control unit
A14 RED AUDIO L- Audio-navigation unit, HandsFreeLink control unit
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.
XM RECEIVER CONNECTOR A (14P) (WITHOUT NAVIGATION)

Cavity Wire Color Terminal Name Connects to
A1 WHT + B Audio unit, USB adapter control unit
A2 LT BLU SYS ACC Audio unit, USB adapter control unit
A3 GRY(1) GA-NET BUS SH Shield for terminals No. 9 and No. 10
A5 GRN AUDIO R + Audio unit, USB adapter control unit, HandsFreeLink control unit
A6 BLK AUDIO L+ Audio unit, USB adapter control unit, HandsFreeLink control unit
A9 WHT GA-NET BUS+ Audio unit, USB adapter control unit, HandsFreeLink control unit
A10 BLK GA-NET BUS- Audio unit, USB adapter control unit, HandsFreeLink control unit
A11 BLK GND Audio unit, USB adapter control unit
A13 WHT AUDIO R- Audio unit, USB adapter control unit, HandsFreeLink control unit
A14 RED AUDIO L- Audio unit, USB adapter control unit, HandsFreeLink control unit
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.
