Unit Check (Quick Check): Radio

This diagnosis checks the audio-navigation unit internal radio tuner and CD/DVD player. If Connection shows NG, replace the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).

NOTE: If the XM link appears red, but the radio link appears green in the System Links, do the XM self-diagnosis (see XM SELF-DIAGNOSIS ).

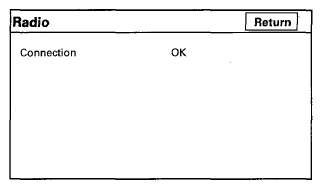

Fig 1: Screen Display - Radio Connection Information

Courtesy of AMERICAN HONDA MOTOR CO., INC.
