ECPS Control Unit Removal/Installation

  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  2. Remove the driver's front door sill trim (see step 1 on FRONT DOOR SILL AREA ).
  3. Remove the driver's kick panel (see step 3 on FRONT DOOR SILL AREA ).
  4. Disconnect the connector (A) from the ECPS control unit (B), then remove the control unit.

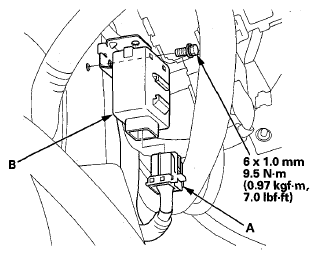

    Fig 1: ECPS Control Unit Connector With Torque Specifications
    G08073282Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the ECPS control unit in the reverse order of removal.
