TPMS Control Up it Inputs and Outputs for 20P Connector: Wheels

The TPMS will not work unless TPMS type wheels are installed on the vehicle. The original equipment wheels have a "TPMS" mark (A) on them, and are counterweighted (B) by adding material on the opposite side of the tire pressure sensor (C), to counterbalance the weight of the sensor.

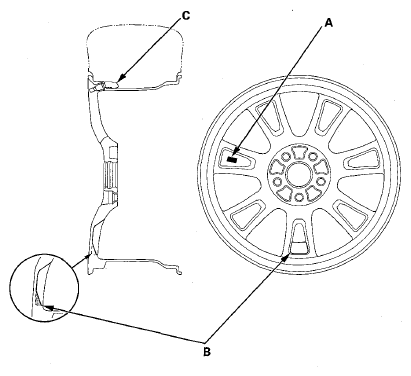

Fig 1: Identifying TPMS Mark, Counterweighted And Tire Pressure Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
