RF Unit 2 Replacement
- Fold forward the rear seat-back (see
REAR SEAT REMOVAL/INSTALLATION
).
- Lift the front edge of the seat flap assembly (see
REAR SEAT REMOVAL/INSTALLATION
).

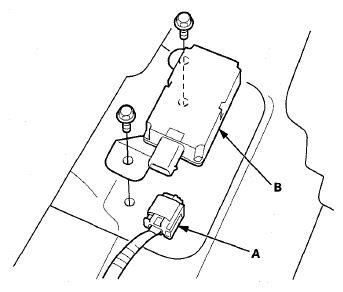

- Disconnect the 3P connector (A) from RF unit 2 (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the two bolts, then remove RF unit 2.
- Install the unit in the reverse order of removal.
