Without Keyless Access System

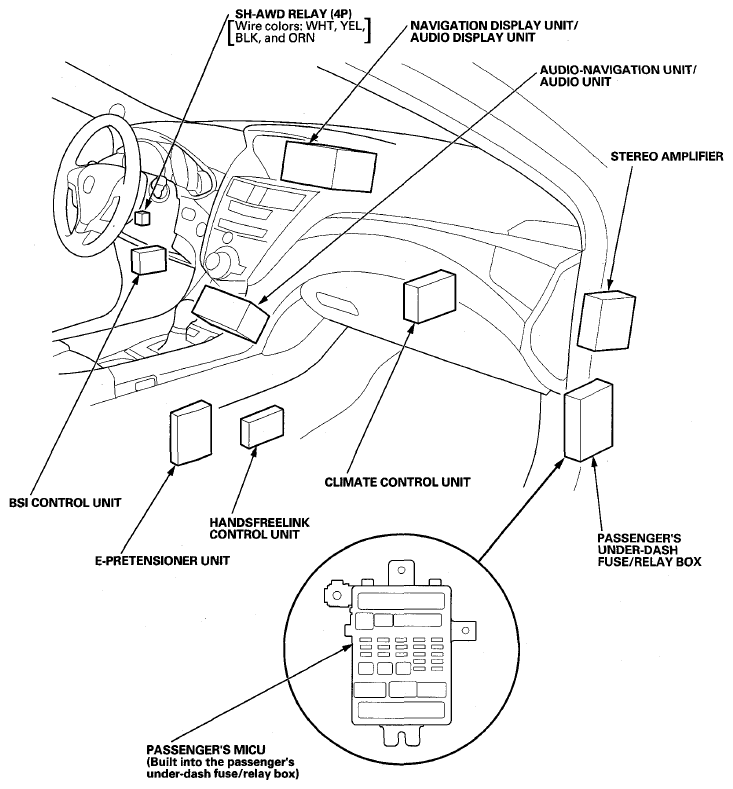

Fig 1: Identifying Relay And Control Unit Locations - Without Keyless Access System (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

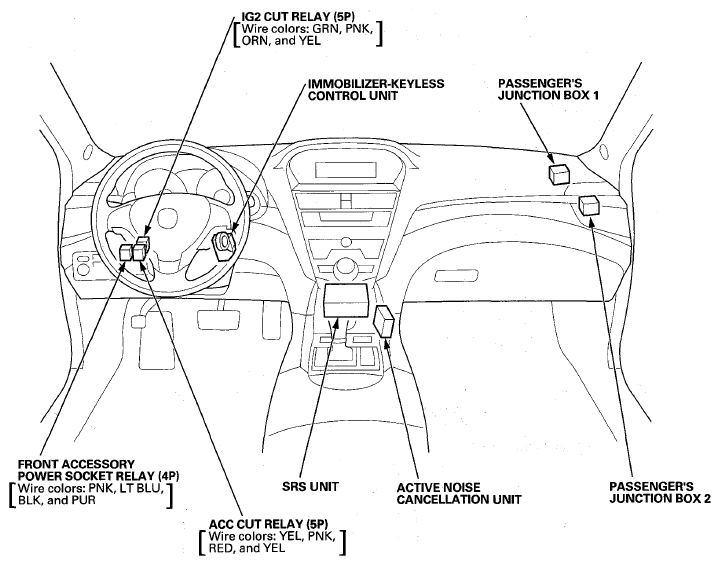

Fig 2: Identifying Relay And Control Unit Locations - Without Keyless Access System (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
