Output Shaft (Countershaft) Speed Sensor

This sensor detects countershaft speed.

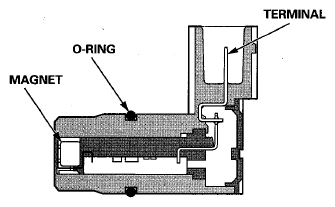

Fig 1: Identifying Magnet, O-Ring And Terminal
G08075477Courtesy of AMERICAN HONDA MOTOR CO., INC.
