Keyless Access Backup Control Unit Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: If the backup control unit is replaced, do the keyless access registration . If the original backup control unit is installed, confirm that all systems work properly.

Backup Control Unit - Install

Courtesy of HONDA, U.S.A., INC.

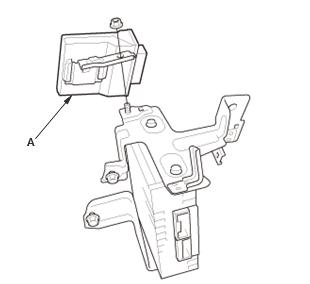

1. Install the backup control unit (A) to the bracket.

Courtesy of HONDA, U.S.A., INC.

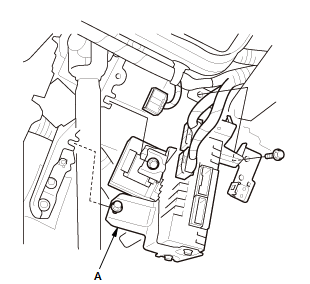

2. Connect the backup control unit connector

3. Install the bracket (A)

4. Connect the stereo amplifier connector.

Keyless Access System - Install

1. Install the keyless access control unit .
Keyless Access System - Registration

1. After replacement, register the backup control unit .
