Keyless Access Backup Control Unit Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Keyless Access Control Unit - Remove

1. Remove the keyless access control unit .

Backup Control Unit - Remove

Courtesy of HONDA, U.S.A., INC.

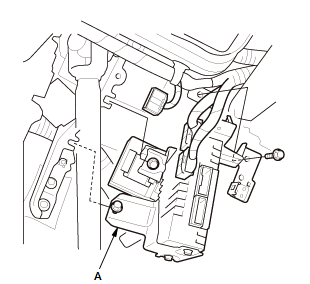

1. Disconnect the stereo amplifier connector

2. Remove the bracket (A)

3. Remove the backup control unit connector.

Courtesy of HONDA, U.S.A., INC.

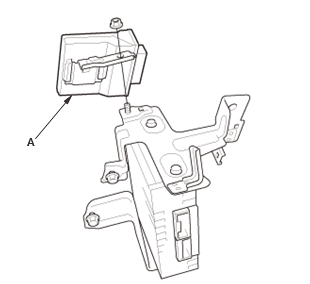

4. Remove the backup control unit (A) from the bracket.
