Keyless Access Control Unit Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: If the keyless access control unit is replaced, do the keyless access registration . If the original keyless access control unit is installed, confirm that all systems work properly.

Keyless Access Control Unit - Install

Courtesy of HONDA, U.S.A., INC.

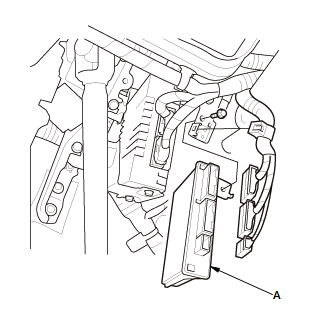

1. Install the keyless access control unit (A) to the bracket

2. Connect the keyless access control unit connectors.

Courtesy of HONDA, U.S.A., INC.

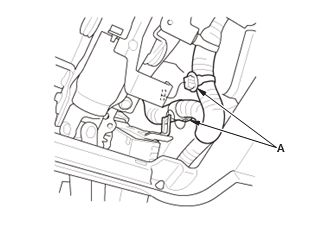

3. Install the harness clips (A).

Driver's Dashboard Lower Cover - Install

1. Install the driver's dashboard lower cover .
Keyless Access System - Registration

1. After replacement, register the keyless access control unit .
