Keyless Access Control Unit Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Driver's Dashboard Lower Cover - Remove
      1. Remove the driver's dashboard lower cover .
  2. Keyless Access Control Unit - Remove

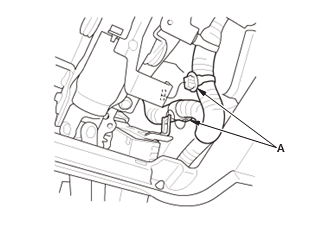

    GHH102334Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the harness clips (A).

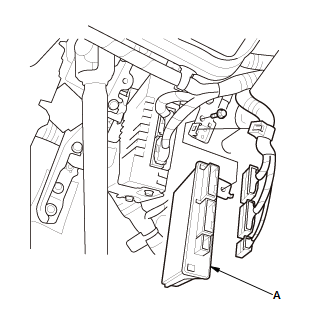

    GHH102335Courtesy of HONDA, U.S.A., INC.
    		 2. Disconnect the keyless access control unit connectors

    3. Remove the keyless access control unit (A) from the bracket.
