Keyless Access LF Antenna (Front Interior) Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Front Interior LF Antenna - Install

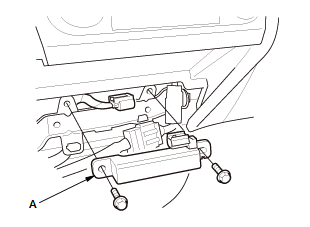

    GHH102339Courtesy of HONDA, U.S.A., INC.
    		 1. Connect the front interior LF antenna connector

    2. Install the front interior LF antenna (A).
  2. Center Console Pocket - Install
      1. Install the center console pocket .
