Keyless Access LF Antenna (Middle Interior) Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Middle Interior LF Antenna - Install

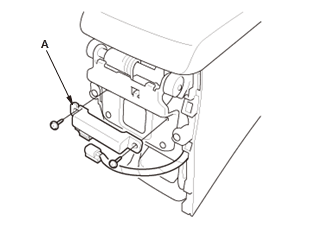

    GHH102341Courtesy of HONDA, U.S.A., INC.
    		 1. Connect the middle interior LF antenna connector

    2. Install the middle interior LF antenna (A).
  2. Center Console Rear Trim - Install
      1. Install the center console rear trim .
