Keyless Access Power Control Unit Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: If the power control unit is replaced, do the keyless access registration. If the original power control unit is installed, confirm that all systems work properly.

Power Control Unit - Install

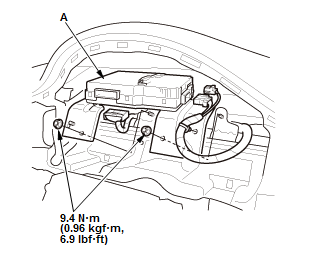

Fig 1: Installation Of Power Control Unit With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Connect the power control unit connectors
2. Install the power control unit (A) to the steering hanger beam.
GPS antenna - Install

1. Install the GPS antenna .
Gauge Control Module - Install

1. Install the gauge control module .
Keyless Access System - Registration

1. After replacement, register the power control unit .
