Keyless Access RF 1 Unit Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. RF Unit 1 - Install

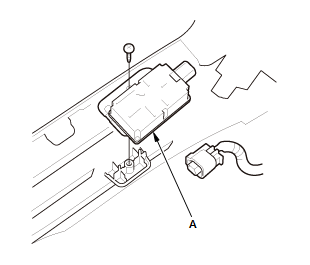

    GHH102351Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the RF unit 1 connector.

    2. Install the RF unit 1 (A).
  2. Center Console Panel - Install
      1. Install the center console panel .
