Keyless Access RF 1 Unit Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Center Console Panel - Remove
      1. Remove the center console panel .
  2. RF Unit 1 - Remove

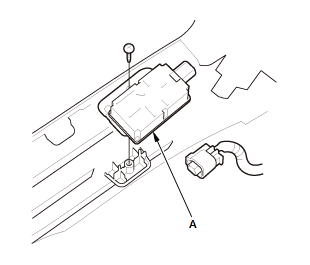

    GHH102350Courtesy of HONDA, U.S.A., INC.
    		 1. Remove the RF unit 1 (A).

    2. Disconnect the RF unit 1 connector.
