Keyless Access RF 2 Unit Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

RF Unit 2 - Install

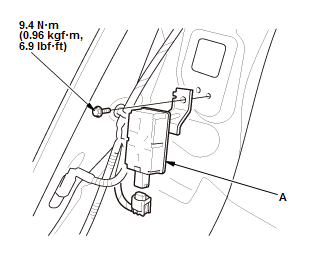

Fig 1: Installation Of RF Unit 2 With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Install the RF unit 2 (A)
2. Connect the RF unit 2 connector.
Seat Right Side Bolster - Install

1. Install the seat right side bolster .
