Keyless Access RF 2 Unit Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Seat Right Side Bolster - Remove
      1. Remove the seat right side bolster .
  2. RF Unit 2 - Remove

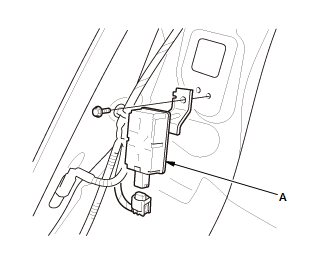

    GHH102352Courtesy of HONDA, U.S.A., INC.
    		 1. Disconnect the RF unit 2 connector

    2. Remove the RF unit 2 (A).
