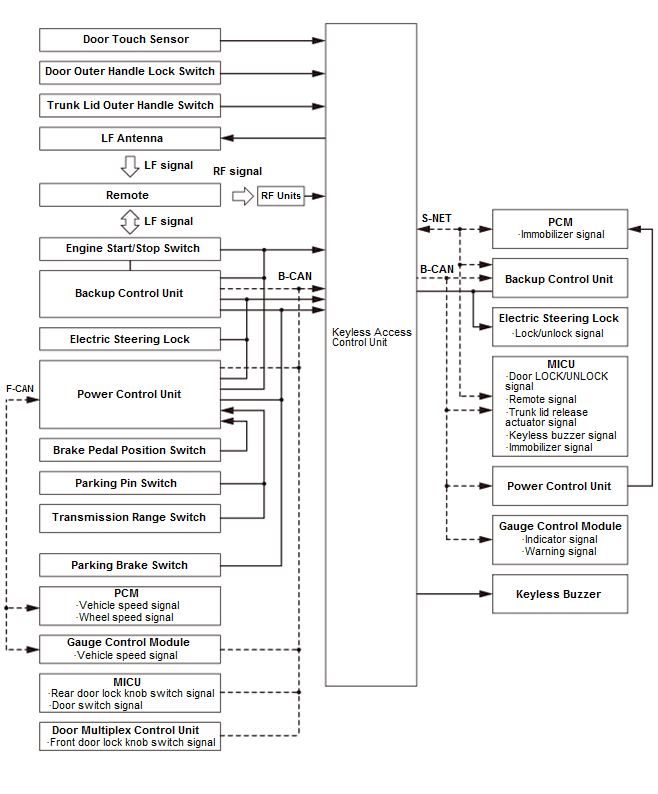

Keyless Access System Description - System Diagram

WARNING: This page is about a different variant/trim than selected.
GHH102073Courtesy of HONDA, U.S.A., INC.
