Keyless/Power Door Locks/Security System Description - Overview

WARNING: This page is about a different variant/trim than selected.

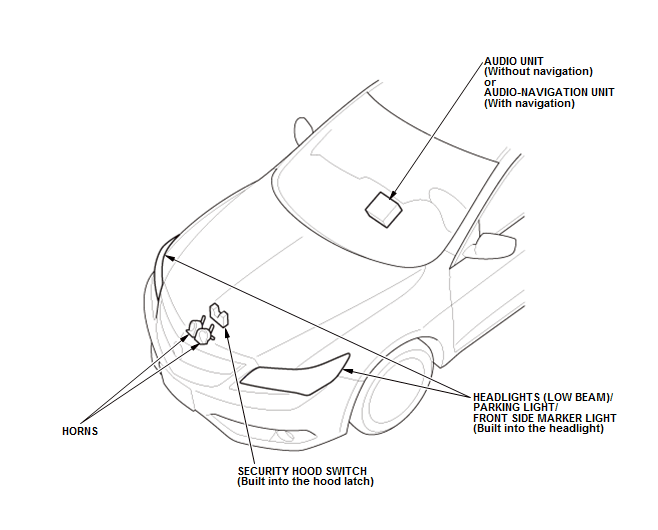

Security Alarm

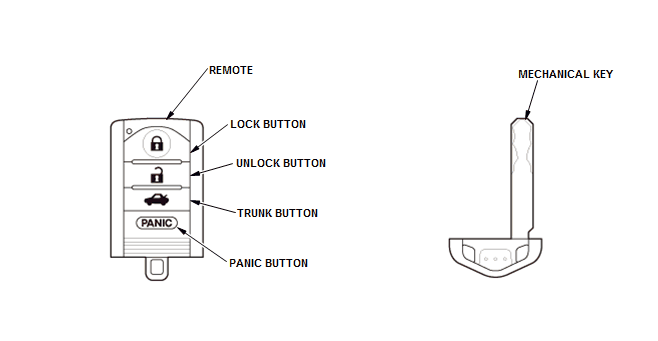

The security alarm system is armed automatically after the doors, hood, and trunk are closed and locked. For the system to arm, the vehicle must be in the OFF (LOCK) mode, and the MICU must receive signals that the doors, hood, and trunk are closed and locked. The alarm can be disarmed at any time by pressing the UNLOCK button on the transmitter.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

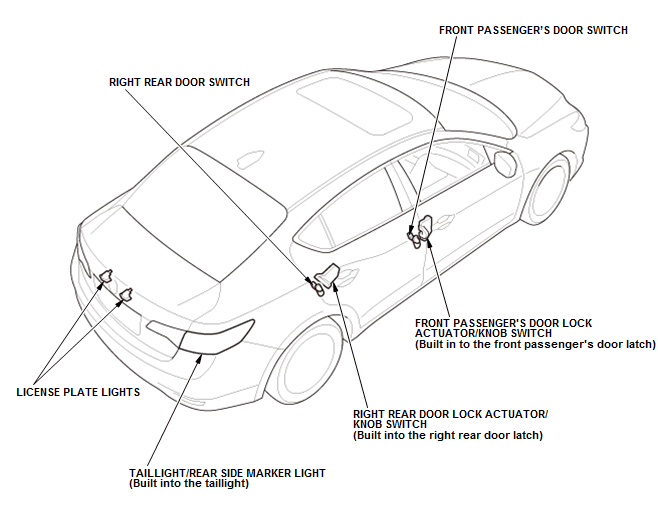

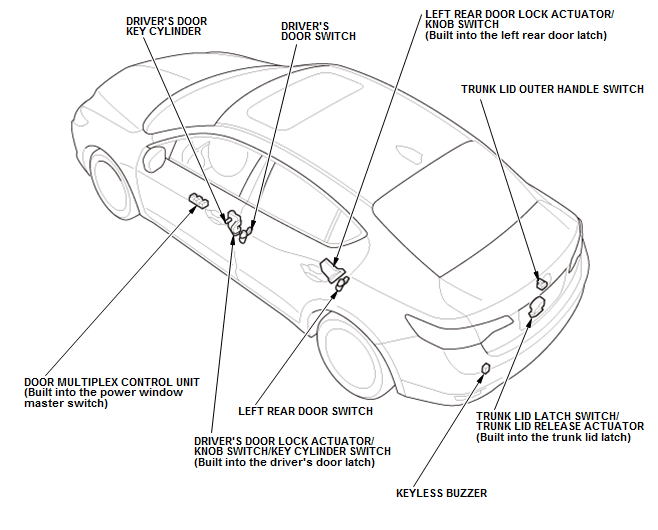

Keyless, Power Door Locks System

Locking and unlocking of the doors and trunk are controlled by the MICU after it receives the signals from the switches and the B-CAN. The MICU also performs the door lock control, anti-lockout and keyless door lock control.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
