Door Key Cylinder Switch Test: Test

WARNING: This page is about a different variant/trim than selected.
  1. Front Door Panel - Remove
      1. Remove the driver's door panel .
  2. Door Key Cylinder Switch - Test
    GHH102119GHH102120Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH102119GHH102120Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

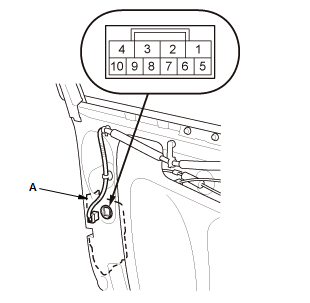

    		 1. Disconnect the driver's door latch connector.

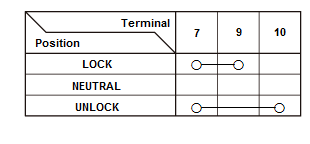

    2. Check for continuity between the terminals in each switch position according to the table.
    3. If the continuity is not as specified, the door key cylinder switch is faulty; replace the driver's door latch (A).
    4. Connect the driver's door latch connector.
  3. Front Door Panel - Install
      1. Install the driver's door panel .
