Door Lock Actuator Test: Test

WARNING: This page is about a different variant/trim than selected.

Front Door

Front Door Panel - Remove

1. Remove the front door panel .

Front Door Lock Actuator - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

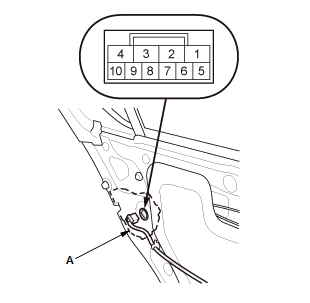

Driver's and Front Passenger's Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Disconnect the front door latch connector.
2. Check the actuator operation by connecting power and ground according to the table. NOTE: To prevent damage to the actuator, apply battery voltage only momentarily.
3. If the actuator does not operate as specified, the front door lock actuator is faulty; replace the front door latch (A).
4. Connect the front door latch connector.

Front Door Panel - Install

1. Install the front door panel .

Rear Door
Rear Door Panel - Remove

1. Remove the rear door panel .

Rear Door Lock Actuator - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

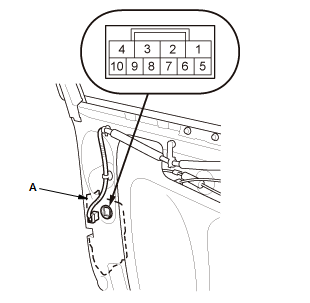

Left and Right Rear Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

1. Disconnect the rear door latch connector.
2. Check the actuator operation by connecting power and ground according to the table. NOTE: To prevent damage to the actuator, apply battery voltage only momentarily.
3. If the actuator does not operate as specified, the rear door lock actuator is faulty; replace the rear door latch (A).
4. Connect the rear door latch connector.

Rear Door Panel - Install

1. Install the rear door panel .
