Door Lock Knob Switch Test: Test

WARNING: This page is about a different variant/trim than selected.

Front Door

Front Door Panel - Remove

1. Remove the front door panel .

Front Door Lock Knob Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

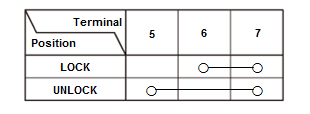

Driver's Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

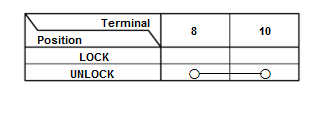

Front Passenger's Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

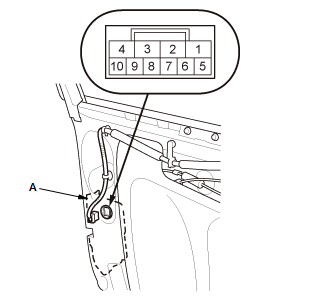

1. Disconnect the front door latch connector.
2. Check for continuity between the terminals in each switch position according to the table.
3. If the continuity is not as specified, the front door lock knob switch is faulty; replace the front door latch (A).
4. Connect the front door latch connector.

Front Door Panel - Install

1. Install the front door panel .

Rear Door
Rear Door Panel - Remove

1. Remove the rear door panel .

Rear Door Lock Knob Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

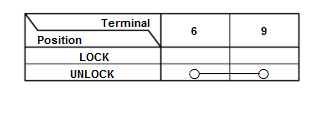

Left and Right Rear Door

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

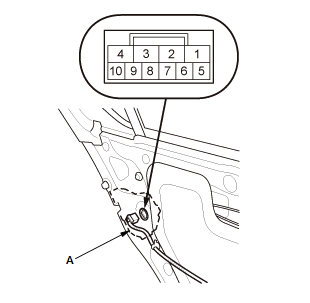

1. Disconnect the rear door latch connector.
2. Check for continuity between the terminals in each switch position according to the table.
3. If the continuity is not as specified, the rear door lock knob switch is faulty; replace the rear door latch (A).
4. Connect the rear door latch connector.

Rear Door Panel - Install

1. Install the rear door panel .
