Roof Console Module - Remove

1. Remove the roof console module .
HomeLink Switch - Test

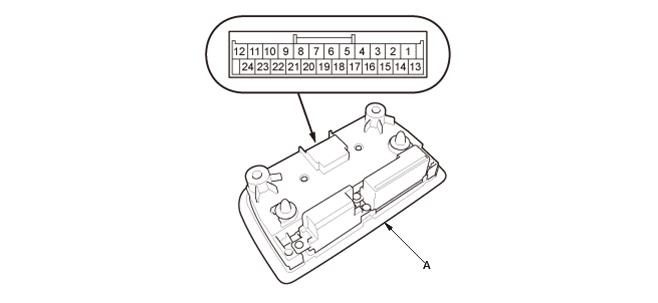

NOTE: The HomeLink switch (A) is built into the roof console module.

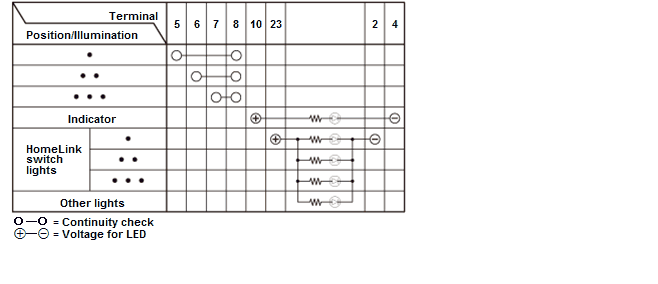

1. Check the switch according to the table.
NOTE:
- When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. Apply power and ground to the terminals according to the table to check the LEDs for illumination.

NOTE: Be aware of this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

3. If the result is not as specified, the HomeLink switch is faulty; replace the roof console module .
Roof Console Module - Install

1. Install the roof console module .
