Keyless Access LF Antenna (Door and Trunk) Function Test
WARNING: This page is about a different variant/trim than selected.
NOTE: Before testing, check for DTCs. If any DTCs are indicated, troubleshoot the indicated DTCs first.
1. Connect the HDS to the data link connector (DLC) .
2. Press the engine start/stop button to select the ON mode.
3. Select KEYLESS ACCESS CONTROL UNIT from the ONE-PUSH START system select menu with the HDS.
4. Select the SELF CHECK and if any malfunction is found, troubleshoot it first.

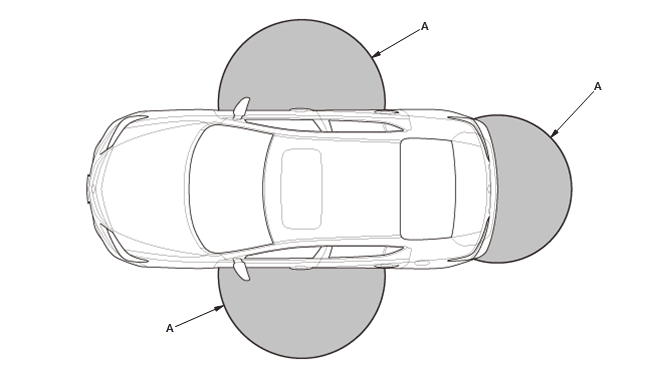

5. Select the FUNCTIONAL TESTS, and do the antenna driving test by checking the transmitting areas (A) between the LF antenna and the keyless remote.
| LF Antenna Location | HDS Indication (Functional Tests) |
|---|---|
| Driver's door LF antenna | Driver Antenna Driving |
| Front passenger's door LF antenna | Front Passenger Antenna Driving |
| Rear bumper LF antenna | Trunk/Tailgate/Rear Bumper Antenna Driving |
NOTE:
- Functional Tests cannot operate at the same time, check the LF antennas one at a time.
- Test the transmitting area at about 35.4 in (90 cm) height from the ground.
- The LED will blink when the keyless remote is within the shaded areas.
