Park Pin Switch Test: Test

WARNING: This page is about a different variant/trim than selected.
  1. Center Console - Remove
      1. Remove the center console .
  2. Park Pin Switch - Test
    GHH102149GHH102150Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.
    GHH102149GHH102150Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

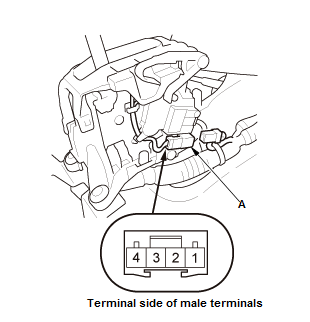

    		 1. Disconnect the park pin switch/shift lock solenoid connector.

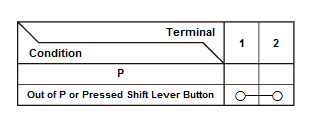

    2. Check for continuity between the terminals in each shift lever condition according to the table.
    3. If the continuity is not as specified, check the shift cable adjustment . If the cable adjustment is OK, the park pin switch is faulty; replace the shift lever assembly (A).
    4. Connect the park pin switch/shift lock solenoid connector.
  3. Center Console - Install
      1. Install the center console .
