Engine Removal and Installation: Notes

*: Available through the Acura Tool and Equipment Program 888-424-6857.

Special Tools Required

Image Description/Tool Number
GHH97942Courtesy of HONDA, U.S.A., INC.
 Universal Lifting Eyelet 07AAK-SNAA120

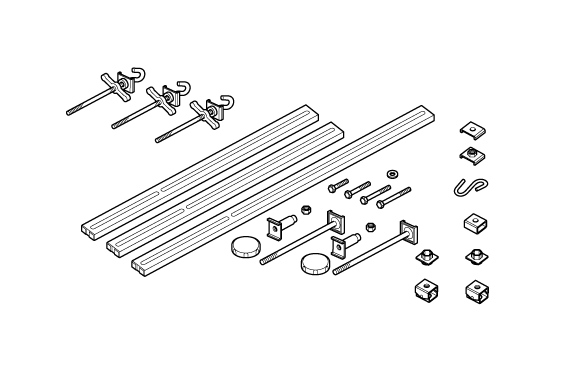

GHH97940Courtesy of HONDA, U.S.A., INC.
 Engine Support Hanger, A and Reds AAR-T1256*
GHH97941Courtesy of HONDA, U.S.A., INC.
 Subframe Adapter VSB02C000016*

*: Available through the Acura Tool and Equipment Program 888-424-6857.
