Exploded View

  1. Intake Manifold - Exploded View

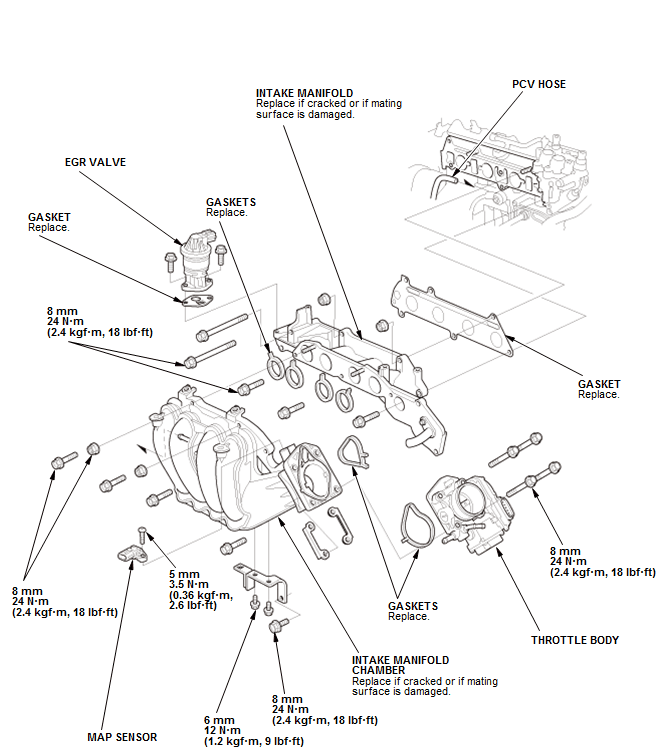

    Fig 1: Exploded View Of Intake Manifold Replacement Components With Torque Specifications
    GHH99820Courtesy of HONDA, U.S.A., INC.
