Exploded View
Intake Manifold - Exploded View

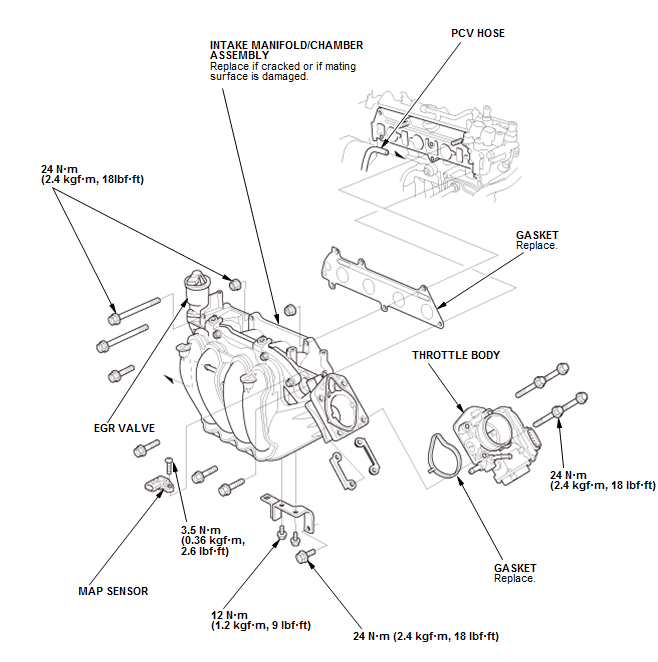

Fig 1: Exploded View Of Intake Manifold Replacement Components With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
